Counter Depth Fridge Dimensions Explained
Most homeowners realize their new refrigerator is too large only after it blocks a busy walkway or sticks out six inches past the cabinetry. This protrusion ruins the sleek lines of a modern kitchen and makes a high-traffic area feel cramped and poorly planned.
Getting these measurements wrong leads to a constant eyesore or the massive headache of returning a heavy appliance. At Appliance Solutions, we help you find a unit that sits nearly flush with your counters to provide a high-end look without the expense of custom built-ins.
This guide looks at everything you need to know about counter depth fridge dimensions so you can choose the right model for your home. We will cover the difference between case depth and total depth while explaining how to account for door swing. Understanding counter depth fridge dimensions is the first step toward a kitchen that looks professional and feels spacious.
Upgrade Your Kitchen Aesthetic
Explore our selection of refrigerators that offer a professional, integrated look for any home layout.
Shop Counter Depth RefrigeratorsUnderstanding the Standard Measurements for Counter-Depth Units
When you start shopping, you will notice that counter depth fridge dimensions usually range from 24 to 30 inches in total depth. This is a significant difference from standard units that often reach 35 or 36 inches deep. The primary goal is to match the standard kitchen cabinet depth, which is almost always 24 inches. By keeping the appliance shallow, you keep your kitchen aisles open and clear.
It is vital to distinguish between case depth and total depth. The case depth refers to the box of the refrigerator itself without the doors or handles. To achieve a true integrated look, the case depth should be as close to 24 inches as possible. Once you add the doors and handles, the unit will naturally sit a few inches past the cabinetry so the hinges can function correctly.
Most people assume the entire unit will be 24 inches, but that is rarely the case. Manufacturers design these units so the "box" hides behind the cabinets while the doors remain accessible. This design allows for a shallow depth fridge that still offers plenty of storage space for a busy family.
Finding the Right Fit: Counter-Depth Widths and Heights Explained
While depth is the defining feature, width and height are just as important for a proper fit. Most counter-depth models come in a refrigerator width 36 inch size to fit standard cutouts. You can also find narrower options at 30 or 33 inches if you are working in a smaller kitchen. The width of the unit often dictates the configuration, such as side-by-side models or a counter-depth french door refrigerator.
Height is the measurement that catches many shoppers by surprise. These units typically stand between 66 and 72 inches tall. Because they are shallower than standard models, many brands make them taller to reclaim some of the lost storage volume. You must measure the distance from your floor to the bottom of any overhead cabinets to ensure you have enough vertical clearance.
Never assume that one size fits all in the world of appliances. Every manufacturer has a slightly different approach to cabinet-depth dimensions, and even a half-inch difference can prevent a unit from sliding into your cutout. Always check the specific spec sheet for the model you want. This helps you confirm the exact dimensions before you commit to a purchase.
Counter Depth vs. Standard Depth Refrigerator Dimensions
| Dimension | Counter-Depth Refrigerator | Standard-Depth Refrigerator |
|---|---|---|
| Case Depth | 24" – 25" | 30" – 32" |
| Depth with Doors | 27" – 30" | 33" – 35" |
| Depth with Handles | 29" – 32" | 36" – 39" |
| Total Cubic Foot Capacity | 18 – 24 cu. ft. | 25 – 30+ cu. ft. |
| Ideal Kitchen Type | Small or Modern/Sleek | Large or High-Capacity Needs |
How to Measure Your Kitchen for a Counter-Depth Refrigerator
Measuring for a new fridge requires more than just checking the hole in your cabinets. Start by measuring the height of the cutout at the left, center, and right sides. Floors are not always perfectly level. Check the levelness of your floor before measuring the height; even a small slope can cause a tall unit to tilt and hit the upper cabinets.
Next, measure the width of the opening at the top, middle, and bottom. If your cabinets have warped over time, the opening might be narrower in the center than at the floor. You also need to measure the kitchen floor space in front of the fridge. Make sure you have enough room to walk past the unit even when the doors are fully open.
Finally, do not forget the delivery path. Measure every doorway, hallway, and corner from your front door to the kitchen. A fridge that fits your cabinets is useless if it cannot get through the laundry room door. You also need to leave about an inch of space behind and above the unit for proper ventilation. If the unit cannot breathe, the compressor will work too hard and fail early.
Ensuring Your Counter-Depth Fridge Opens Properly in Your Layout
One of the biggest mistakes people make is trying to push the fridge too far back. Even a counter-depth unit must have its doors stick out slightly beyond the cabinets. If the doors are flush with the cabinetry, they will hit the edges of the counters when you try to open them. This prevents you from opening the doors wide enough to pull out crisper drawers or glass shelves.
To avoid this, you need to account for door swing clearance. Most units require the doors to open at least 90 degrees for basic access, but 120 degrees is better for cleaning. If you are placing your fridge next to a wall, this becomes even more difficult. You will need several inches of extra space on the hinge side so the door can swing open without hitting the wall.
Some premium models feature zero-clearance hinges. These hinges allow the door to rotate within the width of the refrigerator itself. This is a great solution if your kitchen layout is tight. Make sure to check the hinge clearance requirements on the manufacturer's diagram to see how much "elbow room" the doors need to function in your specific layout.
Counter Depth Fridge Dimensions Pros and Cons
Choosing a shallower refrigerator involves balancing your desire for a high-end aesthetic with your need for internal storage capacity. While these units improve the flow of your kitchen, they do require some adjustments in how you organize your groceries.
Pros
Integrated Look
Creates a high-end integrated look without the cost of a full built-in.
Space Efficiency
Opens up more floor space in narrow or galley-style kitchens.
Visibility
Makes it easier to see items at the back of the shelf.
Reduced Waste
Reduces the chance of food getting "lost" and expiring in deep corners.
Traffic Flow
Improves the overall traffic flow in busy homes.
Cons
Capacity
Offers less total cubic feet capacity than standard-depth models.
Cutout Requirements
Requires a wider or taller cutout to match standard storage volumes.
Cost
Costs more on average due to specialized cooling engineering.
Size Constraints
Can struggle to hold extra-large items like oversized pizza boxes.
Best Counter-Depth Refrigerators for Every Kitchen Layout
Finding the right model means looking for a balance between external dimensions and internal storage. These featured refrigerators solve the problem of bulky appliances by fitting closer to your cabinets while using clever shelving to maximize every inch of space.

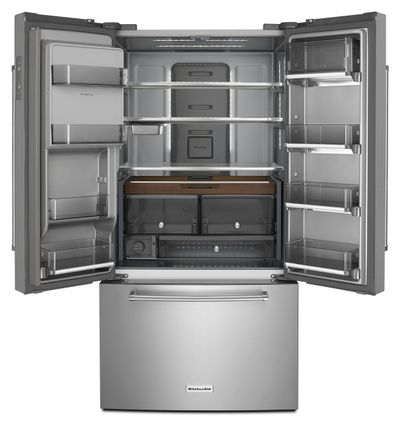

KitchenAid 23.8 Cu. Ft. Stainless Steel with PrintShield Finish Counter-Depth French Door Refrigerator
This KitchenAid model is a top choice for those who want a professional look combined with massive storage. It offers a large capacity for a counter-depth unit, making it ideal for families who cook often. The PrintShield finish stays clean even in busy homes with children. It fits beautifully into a 36-inch opening and provides a sophisticated, built-in appearance that instantly upgrades the kitchen. The interior organization is designed to keep fresh ingredients within easy reach.
Top Features
- ExtendFresh Plus System: Monitors temperatures in both the fridge and freezer to keep food fresh.
- Pull-Out Tri-Level Freezer: Features three levels of storage to keep frozen items organized.
- Slide-Away Shelf: Retracts to accommodate tall items like wine bottles or pitchers.

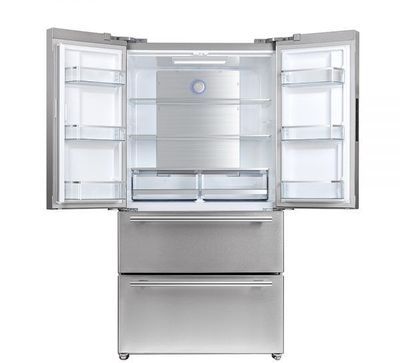

Forno Moena 36" 19.2 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
Shop the Forno Moena 36" 19.2 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
The Forno Moena provides a pro-style aesthetic at a very competitive price point. It features a clean, industrial design with robust handles that feel sturdy in your hand. This model is perfect for homeowners who want the look of a high-end chef’s kitchen without the five-figure price tag. Its shallow depth helps it blend into your cabinetry, preventing it from dominating the room. The stainless steel finish is durable and easy to maintain over years of use.
Top Features
- Dual Cooling System: Uses independent cooling for the fridge and freezer to maintain optimal humidity.
- LED Lighting: Bright white lights illuminate every corner so nothing gets lost in the back.
- Adjustable Glass Shelves: Allows you to customize the interior layout for different grocery hauls.

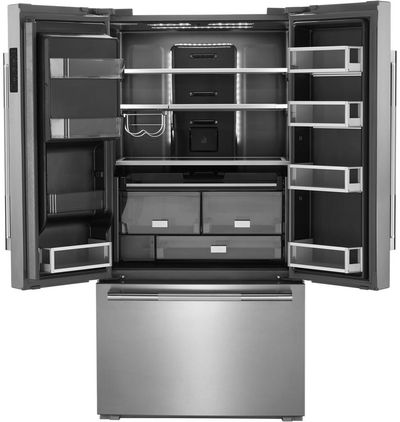

JennAir RISE 36 in. 23.8 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
Shop the JennAir RISE 36 in. 23.8 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
The JennAir RISE series is all about luxury and performance. This unit stands out with its Obsidian interior, which provides a dramatic backdrop for your fresh food. It is designed to fit flush with 24-inch deep cabinets, offering one of the best integrated looks on the market. The build quality is exceptional, featuring heavy-duty materials and smooth-glide drawers. It is a statement piece for any modern Tulsa kitchen that values both style and substance.
Top Features
- Obsidian Interior: Provides a premium dark finish that makes colors of fresh food pop.
- TwinFresh Climate Control: Maintains separate air environments to prevent odor transfer.
- Smooth-Close Drawers: Uses high-end glides so drawers shut quietly every single time.

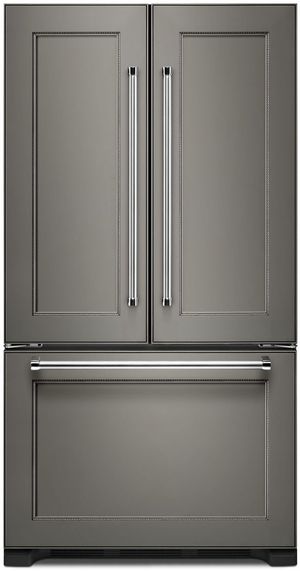

KitchenAid 36 in. 21.9 Cu. Ft. Panel Ready Counter-Depth French Door Refrigerator
Shop the KitchenAid 36 in. 21.9 Cu. Ft. Panel Ready Counter-Depth French Door Refrigerator
If you want your refrigerator to completely disappear, this panel-ready KitchenAid model is the answer. You can attach custom cabinet panels to the front so it matches your kitchen perfectly. This creates a truly integrated look that is common in high-end luxury homes. Despite the custom exterior, the interior is packed with modern features to keep your food organized. It is the ultimate choice for a clean, minimalist kitchen design where the appliances are hidden.
Top Features
- Panel-Ready Design: Allows for custom wood panels to match your existing kitchen cabinets.
- Internal Water Dispenser: Keeps the exterior clean while providing filtered water inside.
- FreshChill Temperature Drawer: Offers a dedicated space for meats or cheeses with adjustable settings.

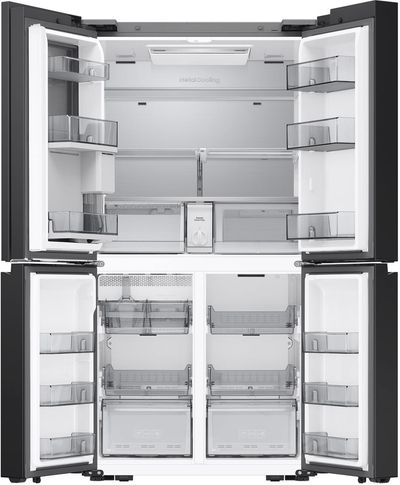

Samsung Bespoke 36" 23.5 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
Shop the Samsung Bespoke 36" 23.5 Cu. Ft. Stainless Steel Counter-Depth French Door Refrigerator
The Samsung Bespoke line offers a modern twist on the classic refrigerator. This model features a hidden beverage center and an auto-fill water pitcher inside the door. It uses AI technology to optimize cooling and keep energy bills low. The flat-panel design is very modern and sits close to the wall for a tidy appearance. It is a great fit for tech-savvy homeowners who want a smart appliance that also looks like a piece of high-end furniture.
Top Features
- Beverage Center: Includes a dispenser and an AutoFill water pitcher tucked inside the door.
- Dual Auto Ice Maker: Produces both cubed ice and smaller Ice Bites for different drink preferences.
- AI Hybrid Cooling: Adjusts compressor speed and airflow based on usage patterns to save energy.
Choosing the Right Counter Depth Fridge Dimensions for Your Home
Selecting the perfect refrigerator requires a clear understanding of your kitchen measurements and your storage needs. Remember to prioritize the integrated look by focusing on the case depth while allowing enough room for the doors to swing open freely. Measuring your cutout and your delivery path will save you from expensive mistakes on installation day.
If you are ready to transform your kitchen, visit Appliance Solutions in Tulsa. Our local experts can guide you through our showroom to find the model that fits your layout and your lifestyle. We offer professional installation and personalized service that big-box stores simply cannot match. Come see us today and find the perfect fit for your home.
Frequently Asked Questions about Counter Depth Fridge Dimensions
Counter-depth units usually have a case depth between 24 and 25 inches to align with standard cabinets. You must also account for the door and handle thickness, which adds several inches to the total measurement.
You generally lose about 3 to 5 cubic feet of storage compared to a standard-depth model of the same width. Many brands compensate for this loss by making the units slightly wider or taller to provide more usable space.
These units are designed to work with standard kitchen cabinet depth of 24 inches without needing custom carpentry. However, you should check that your cutout height and width provide enough room for the specific model you choose.
The body of the fridge should be flush with the cabinets, but the doors must stick out enough to clear the cabinet edges when opened. This usually means the doors protrude about 2 to 3 inches beyond the countertop.
Most manufacturers offer a refrigerator width 36 inch option specifically to fit into standard appliance cutouts. Always verify the actual width on the spec sheet, as some models are slightly narrower to allow for easier installation.
Counter-depth models often carry a higher price tag because they require more specialized engineering to fit high-capacity cooling into a shallower frame. They are frequently marketed as premium appliances because they provide a built-in aesthetic for a lower price than fully integrated units.
